Nitrogen Pro
SRAM RED AXS
$13,500
Aurora Charcoal
Find your size
All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.
SRAM RED AXS Components
ATTEN CHB-01 Aero Handlebar
Physics dictate that aero gains matter most at the front of the bike, so we relentlessly honed every surface of the ATTEN CHB-01 Aero Handlebar, down to its integrated computer mount. Rider-focused ergonomics, ultra-lightweight construction and unsurpassed handling for real-world gains.
ATTEN X Scope Artech 6.A+
The ATTEN x Scope Artech 6.A+ wheelset was co-developed with Scope, building on their flagship, WorldTour-proven design. We re-optimized the rim shape for even greater speed on the Nitrogen Pro with 30c tires, minimizing drag and turbulence where it counts most: the wheel-fork interface.
Vittoria Corsa Pro TLR 30c
The 30c Vittoria Corsa PRO is the tire the ATTEN x Scope Artech 6.A+ was designed with. This Tubeless-Ready clincher carries the pedigree of the world’s most successful racing tire, proven from high mountain passes to the finales of the classics.
CeramicSpeed SLT Headset & Coated T47 BB
The CeramicSpeed SLT headset bearings and coated T47 bottom bracket nearly eliminate friction with a self-lubricating, corrosion-resistant, maintenance-free design. Hand-built in Denmark, garunteed for life.
Frameset
Frame
Nitrogen Pro
Fork
Nitrogen Pro
Headset
IST3 - CeramicSpeed SLT Bearings
Integrated Cables
Yes
Wheels
Wheels
ATTEN X Scope Artech 6.A+
Tires
Vittoria Corsa Pro TLR 30c
Tire Clearance
32c (34mm)
Group
Bottom Bracket
CeramicSpeed T47 DUB Coated
Front Derailleur
SRAM Red AXS
Rear Derailleur
SRAM Red AXS
Crankset
Length chart
SRAM Red AXS Powermeter 48/35
Chain
SRAM RED
Cassette
SRAM XG 1290 E1 10-33
Brakes
Rotors
SRAM Centerlock Paceline X / F:160mm R:140mm
Shifters
SRAM RED AXS Shifter Set
Other Components
Handlebar
Width chart
ATTEN CHB-01 Aero Handlebar
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Repente Quasar CR 2.0
Seatpost
Argon 18 Nitrogen Pro
Included with bike
ATTEN bottle cages
Yes
Computer mount
Interchangeable inserts for Garmin and Wahoo; screen tilt shims (3°, 6°, 9°, 12°); accessory mount

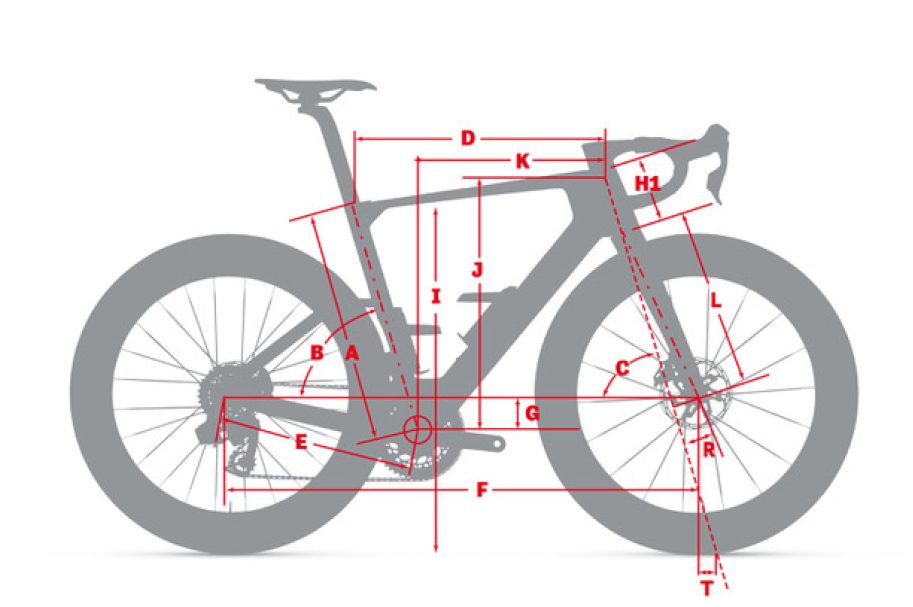

Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
39,5
42,5
46.0
50,5
55.0
59,5
B
Seat tube angle
deg
75.0
74,5
74.0
73,5
73.0
72,5
C
Head Tube Angle
deg
71,2
72,1
72,7
72,7
72,7
73.0
D
Top tube length
cm
50,2
51,9
53,7
55,7
57,8
60,1
E
Chain stay length
cm
41.0
41.0
41.0
41.0
41.0
41.0
F
Wheelbase
cm
96,7
97,2
97,5
99.0
100,6
102.0
G
BB Drop
cm
7,1
7,5
7,9
7,9
7,9
7,9
H1
Head Tube Length S
cm
8,1
9,7
11,3
13,8
16,5
19,2
I
Stand Over Height
cm
68,2
70,6
73,4
77,2
81.0
84,8
L
Fork Length (Axle-to-crown)
cm
37,6
37,6
37,6
37,6
37,6
37,6
R
Fork Rake
cm
4,9
4,9
4,9
4,9
4,9
4,9
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack
cm
48,6
50,8
53,1
55,5
58.0
60,7
K
Reach
cm
37.0
37,7
38,4
39,2
40.0
40,9
Saddle Height Min
cm
56,5
59,5
63.0
67,5
72.0
76,5
Saddle Height Max
cm
71,5
74,5
78.0
82,5
87.0
91,5
