Krypton
SRAM Rival AXS E1
$5,600 USD
Iridescent Charcoal, Gloss
Frostbite Blue, Gloss
Rainbow Grey
Find your size
All images on this page are used for illustrative purposes only. Actual bike specifications may vary depending on country and assembly options available. Please refer to the Features and Configurations section below for options available in your region.

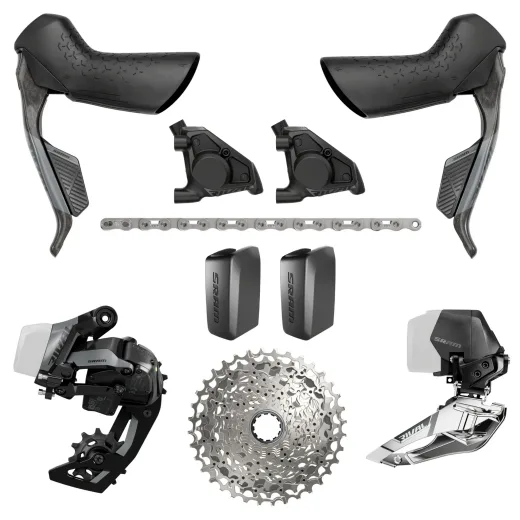

SRAM Rival AXS E1 Components
SRAM Rival AXS
Vittoria Corsa N.EXT TLR 32c
Built for speed, the Corsa N.EXT Tubeless-Ready is optimized for maximum performance. It delivers aero efficiency, low rolling resistance, and confident cornering grip, combined with the durability and puncture protection that keep you pushing at race pace day after day.
ATTEN L42 wheelset
Designed for fast road and all-road riding, the L42's feature a 42 mm rim profile, offering an optimum balance between aerodynamics, weight and handling.
Frameset
Frame
Krypton
Fork
Krypton
Headset
IST2
Integrated Cables
Yes
Storage Optimization System
Length chart
Yes
Wheels
Wheels
ATTEN L42 wheelset
Tires
Vittoria Corsa N.EXT 32-622 TLR, black G2.0
Tire Clearance
Up to 40c (43mm) tire clearance
Group
Bottom Bracket
TOKEN DUB T47
Front Derailleur
SRAM Rival AXS
Rear Derailleur
SRAM Rival AXS
Crankset
Length chart
SRAM RIVAL 46/33
Chain
SRAM Rival 12S
Cassette
SRAM RIVAL AXS WIDE Cassette XG 1250 10-36
Brakes
Brakes
SRAM Rival eTap AXS
Rotors
SRAM Centerlock Paceline / F:160mm R:160mm
Shifters
SRAM Rival AXS E1
Other Components
Handlebar
Width chart
FSA Energy SCR Compact
Stem
Length chart
FSA SMR
Bar Tape
Ciclovation LEATHER TOUCH Tornado Gloss
Saddle
Repente Quasar S 2.0
Seatpost
Argon 18 TDS-C
Included with bike
Toolkit
No
Geometry and fit
Geometry
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
A
Seat tube Height
cm
42.0
45.0
48.5
52.0
55.5
59.0
B
Seat tube angle
deg
75.5
74.9
74.3
73.7
73.1
72.5
C
Head Tube Angle
deg
70.6
71.5
72.3
72.3
72.3
72.8
D
Top tube length
cm
49.6
51.6
53.7
55.8
58.0
60.4
E
Chain stay length
cm
41.5
41.5
41.5
41.5
41.5
41.5
F
Wheelbase
cm
97.5
98.4
98.9
100.5
102.0
103.3
G
BB Drop
cm
8.0
8.0
7.8
7.8
7.8
7.8
H1
Head Tube Length 3D (0mm)
cm
10.6
12.3
14.2
16.4
18.6
20.8
H2
Head Tube Length 3D (25mm)
cm
13.1
14.8
16.7
18.9
21.1
23.3
I
Stand Over Height
cm
67.5
70.4
73.8
77.0
80.1
83.2
Fit (Stack and Reach)
XXS44-46
XS47-50
S51-53
M54-56
L57-59
XL60-62
J
Stack
cm
52.3
54.3
56.3
58.4
60.5
62.8
J
Stack 3D (25mm)
cm
54.7
56.7
58.7
60.8
62.9
65.2
K
Reach
cm
35.7
36.7
37.7
38.6
39.5
40.6
K
Reach 3D (25mm)
cm
34.9
35.9
37.0
37.9
38.8
39.8
Saddle Height Min
cm
59.0
62.0
65.5
69.0
72.5
76.0
Saddle Height Max
cm
74.0
77.0
80.5
84.0
87.5
91.0
